LC35

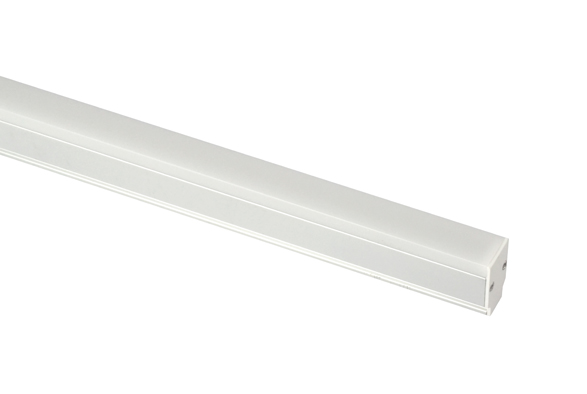

With a U-shaped acrylic diffuser, this LED aluminum channel fixture can evenly bring light from both the top and the sides, and it can be easily fixed in wall or under cabinets with its mounting clips. The biggest feature of this channel light is that it shines uniformly, and no dark spot is visible at any angle.

Certificates
CE, RoHS
Cover Options:
Diffuser
Feature

LEDwise private mold

U-Shape

Dark spot free

Downloads

LC35 Specification

Data Sheet
Product Type LC35
Size 14*24.7mm
Working Voltage 12 / 24V DC
Aluminum Profile Color Silver / Black / White
Cover Diffuser
CRI 90
Available Length 300/500/1,000mm
IP Rating IP54
Working Temperature 0~40
Storage Temperature -20~70
Lifespan 50,000hrs
Dimmable Yes
Line Drawing
Inspiration

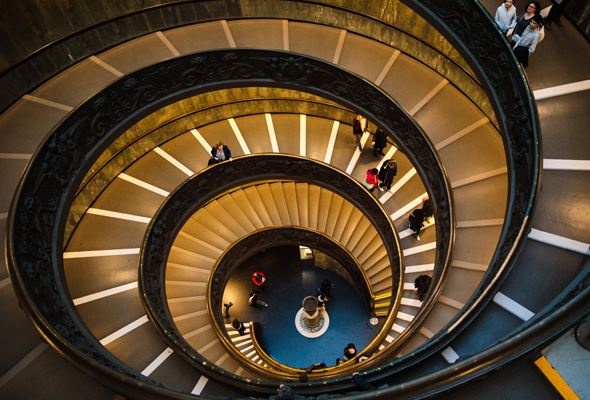

  • Stairs

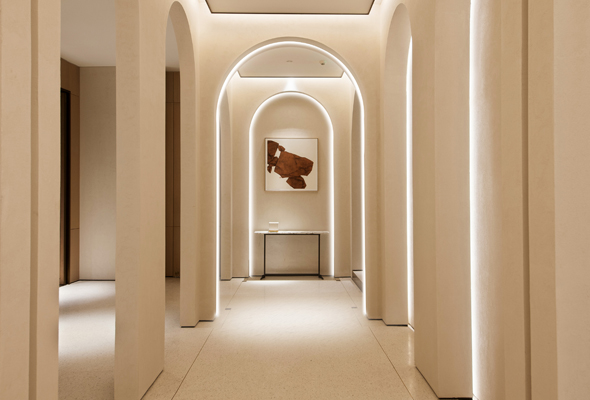

  • Residential
Components

LC35-MC1010

LC35-MC1006

SL-W-W2X0.5

SL-01CP

SL-CL-F

SL-CL-M

SL-WAG01M

SL-WAG01F

Pls download LC35 Specification for more detail.
