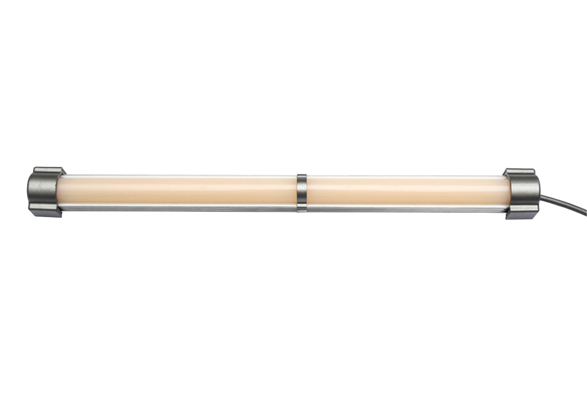

LC66 Aluminum LED Channel Light was specifically developed for applications where custom length, end-to-end illumination and easy on-site installation are crucial. Combining lengths customization with slim extrusion housing design as well as excellent light performance makes LC66 one of the most desirable linear LED lighting solutions available. Standard color 3,000K warm white and 6,000K cool white, different color temperature available upon request, warm glow dimming and tunable versions available upon request. 90+ CRI, customized power and brightness available up to 1,200 lumens per meter. Directly surface mounted using screws or adhesive tape, or with optional angled mounting brackets (order separately). End-to-end seamless connection achieved by jumpers, diffuser clip & base clip, Connection for various turns achieved by I, L & T shape wired connectors (refer page 4-7 for installation, connectors order separately). A Power feed end cap and a termination end cap comes along with each LC66 Channel Light.
LEDwise private mold
Dim to warm LED Strips and Monochromatic LED Strips are alternative
Easy to install
Product Type | LC66 |
Size | 30.5*22.0mm |
Working Voltage | 24V DC |
Aluminum Profile Color | Silver / Black / White |
Cover | Diffuser / Transparent / Milky |
CRI | 90 |
Available Length | 1ft to customized length |
IP Rating | IP20, IP54 |
Working Temperature | 0℃~40℃ |
Storage Temperature | -20℃~70℃ |
Lifespan | 50,000hrs |
Dimmable | Yes |
LC66-PF-500MM
LC66-JC-13MM
LC66-JCL-55MM
LC66-PFI-25MM
LC66-PFTA-20MM
Pls download LC66 Specification for more detail.
