CL03B Downlight

Replacement for traditional Surface mount or Recess mount downlights, and Ceiling lights in Shopping center / Walkway / Hotel / Restaurant / Entertainment places / Display case / Museum / Household.

Dia. & Height

D69*H12.7mm

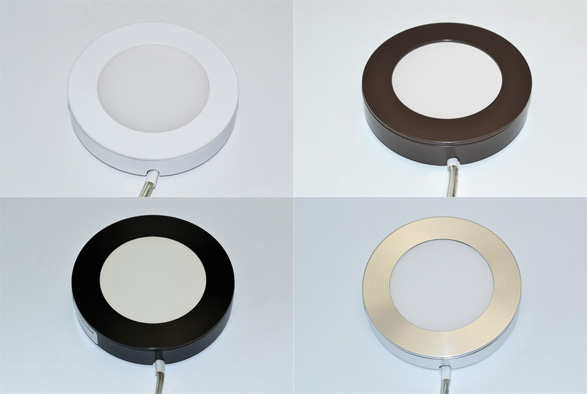

Housing Color:

White, Black, Bronze and Silver.


Features
Input Voltage: 12V DC
LED Source: 2835 SMD
Beam Angle: 112°
CRI: 90+
CCT Options: 3000K, 4000K, 6000K
Watts: 3W.
Dimension: D69*H12.7mm
Material: Aluminum
Mounting method: Surface mount & Recess mount.
Cutout Size: D65mm
Dim: Dimmable, may not match with some types of dimmers, recommend Lutron dimmers.
Technical Data
Model No.
Housing Color
Dia. & Height
Input Voltage
Power
LED
Beam Angle
CRI
CCT
Luminous Flux
CL03BX3W12A
White
D69*H12.7mm
(Cutout Size: D65mm)
12V DC
3W
2835 SMD
112°
90+
W: 3000K
N: 4000K
C: 6000K
3000K: 240Lm
4000K: 250Lm
6000K: 260Lm
CL03BX3B12A
Black
CL03BX3Z12A
Bronze
CL03BX3S12A
Silver


Certificates
CE, RoHS

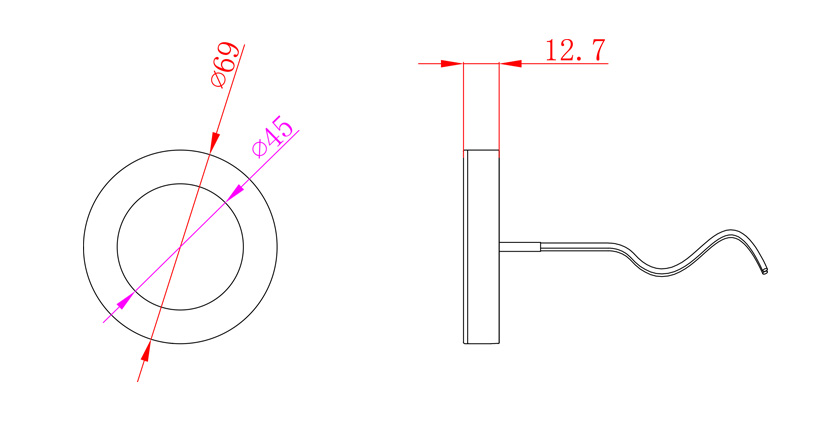

Dimensional Drawing
