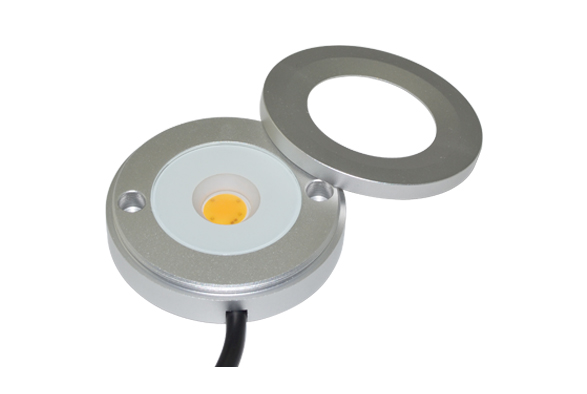

DL04 Downlight

Replacement for traditional mounted or recessed downlights, and Ceiling lights / in Shopping center Walkway / Hotel / Restaurant / Entertainment places Display case / Museum / Household.

Dia. & Height
¢75*61.6mm
Housing Color:
White, Black and Silver are optional
Features

Material: Aluminum

LED Source: 1x3W LED

Dimension: Φ58x(H)14mm

Lens Beam Angle: 30°

Color Rendering Index: CRI>80

Colors of Light Options: Cool White, Natural White, Warm White and Blue

Housing Surface Finish Options: Silver Finish, Black Painting, White Painting

Dim: Dimmable , may not match with some type dimmer, recommmend Lutron dimmer

Technical Data
Product No. Housing Color Dia. & Hight Input Voltage Power LED Beam Angle CRI CCT Flux
DL04S Silver ¢58*14mm AC95~102V or AC195~240V 3W Epistar COB Chips 90° 80+ 2700~3000K/
4000~4500K/
6000~6500K
300lm
DL04B black
DL04W  white

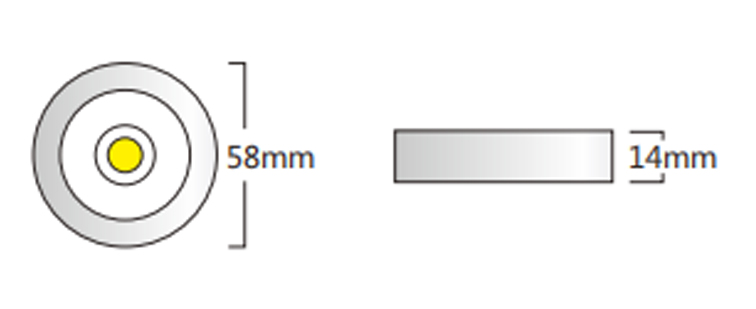

Dimensional Drawing
Certificates

CE, RoHS
