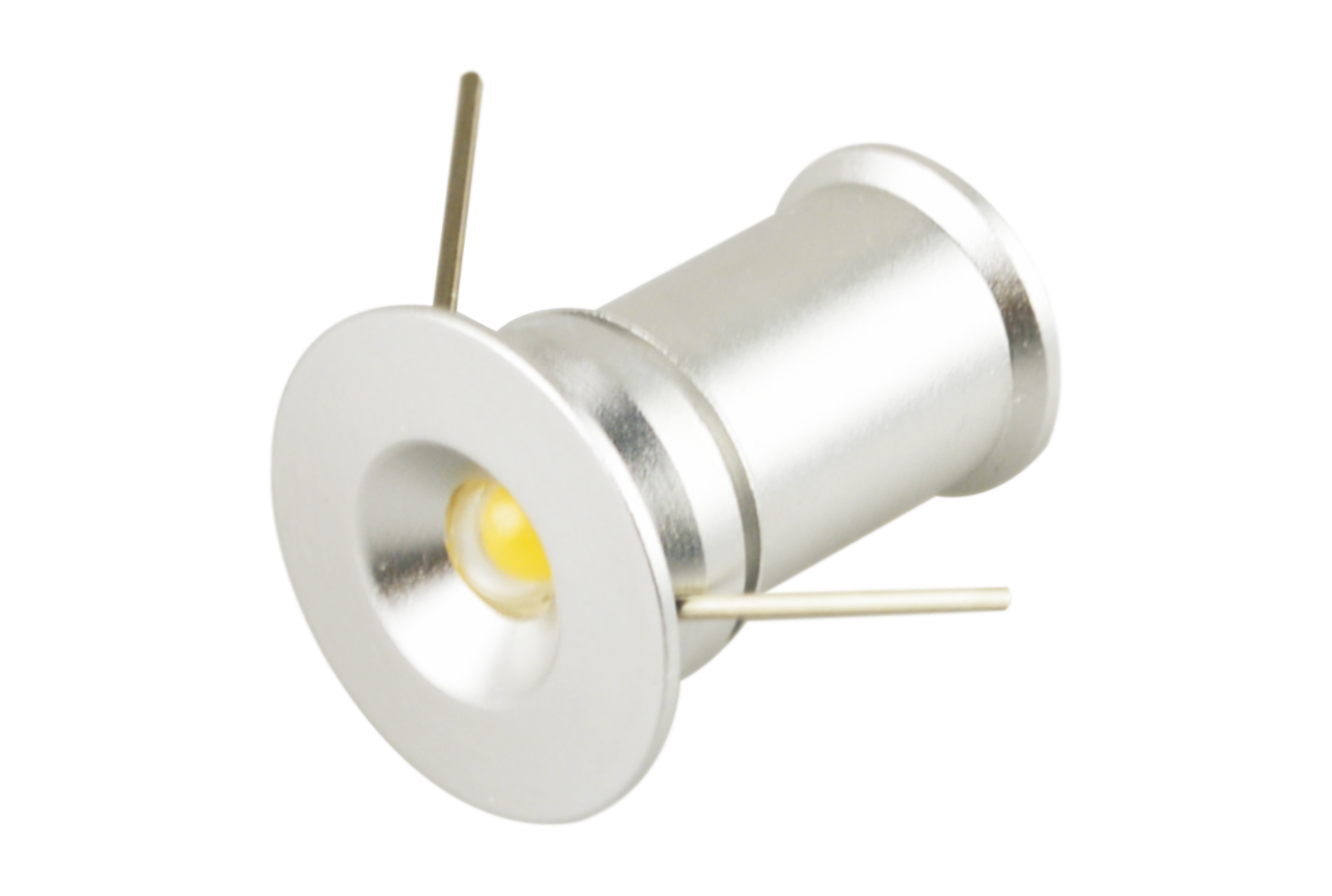

DLS-1WR Downlight


DLS-1WR DownLight / StarLight is compact and cost-effective. Beam angle 30° and 120° are alternative. It's an ideal light to create specific atmosphere at your space.


Dia. & Height

¢20*25mm


Housing Color:

White, Black and Silver are optional


Features

Material: Aluminum

LED Source: 1x1W CREE

Dimension: ¢20*25mm

Lens Beam Angle: 30°/120°

Color Rendering Index: CRI>80

Colors of Light Options: Cool White, Natural White, Warm White

Housing Surface Finish Options: Silver Finish, Black Painting, White Painting

Dim: Dimmable

Technical Data
Part No. Housing Color Wattage Beam Angle Voltage Luminous Flux CRI
DLS-1W-R-W White 1W 30°/120°  AC85-277V  <300lm 80+
DLS-1W-R-B Black AC85-277V <300lm 80+
DLS-1W-R-S Silver AC85-277V <300lm 80+

Dimensional Drawing
Certificates

CE, RoHS
