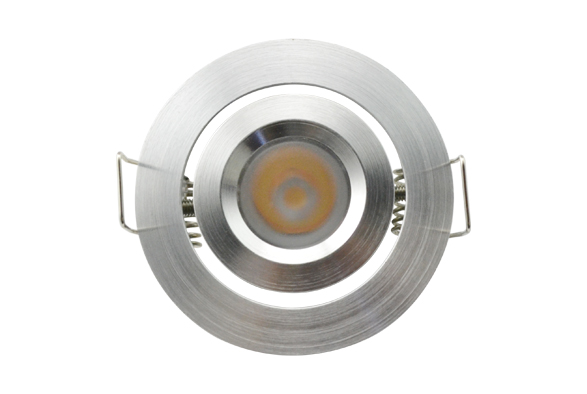

DL01 Downlight

Replacement for traditional mounted or recessed downlights, and Ceiling lights / in Shopping center Walkway / Hotel / Restaurant / Entertainment places Display case / Museum / Household.

Dia. & Height


Housing Color:

White, Black and Silver are optional


Material: Aluminum

LED Source: 1x3W CREE

Dimension: ¢51.5*30.4mm

Lens Beam Angle: 30°

Color Rendering Index: CRI>80

Colors of Light Options: Cool White, Natural White, Warm White

Housing Surface Finish Options: Silver Finish, Black Painting, White Painting

Dim: Dimmable

Technical Data
Part No. Housing Color Wattage Beam Angle CCT Luminous Flux CRI
DL01X3W12A-DIM White 2W 30° 3000K 100lm 80+
DL01X3B12A-DIM Black 4500K 110lm 80+
DL01X3S12A-DIM Silver 6000K 120lm 80+
Dimensional Drawing
