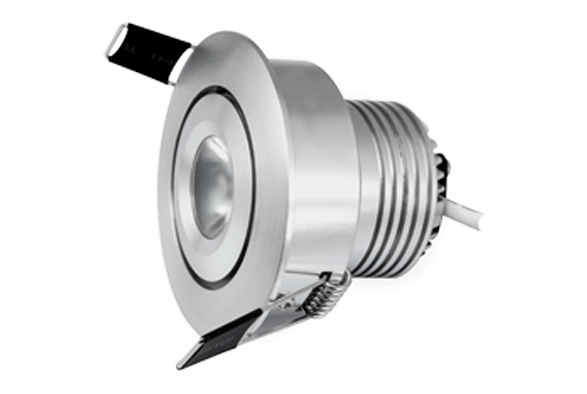

DL06 Downlight

Replacement for traditional mounted or recessed downlights, and Ceiling lights / in Shopping center Walkway / Hotel / Restaurant / Entertainment places Display case / Museum / Household.

Dia. & Height
¢75*61.6mm
Housing Color:
White, Black and Silver are optional
Features

Material: Aluminum

LED Source: 1x6W LED

Dimension: Φ75x(H)61.6mm

Cutout Size: Φ70mm

Lens Beam Angle: 20°

Color Rendering Index: CRI>90

Colors of Light Options: Cool White, Natural White, Warm White and Blue

Housing Surface Finish Options: Silver Finish, Black Painting, White Painting

Dim: Dimmable , may not match with some type dimmer, recommmend Lutron dimmer

Technical Data
Part No. Wattage Beam Angle CCT Luminous Flux Luminous Efficacy CRI
DL06-W6X12A 5.5W 20° 3000K 410lm 75lm/W 90
DL06-N6X12A 450lm 80lm/W 90
DL06-C6X12A 5.5W 20° 6000K 450lm 80lm/W 90

Dimensional Drawing

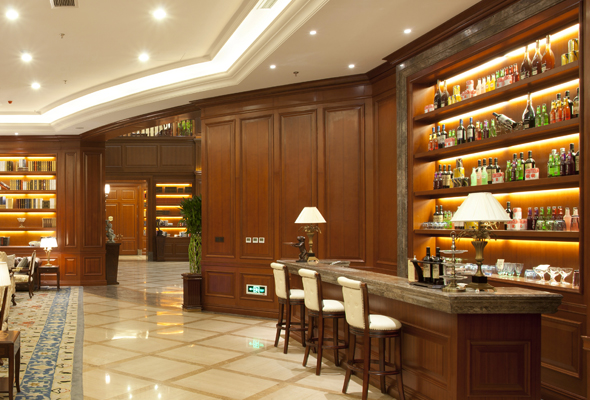

Inspiration
  • Downlights
Certificates

CE, RoHS
