INSPIRATION GALLERY

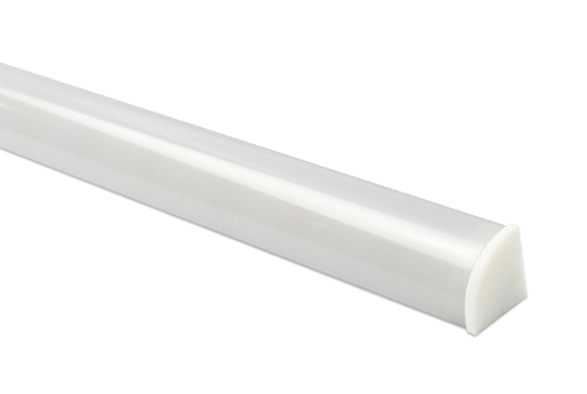

WLC05

Designed to be mounted in a rebated channel or plastered in place, WLC05 is ideal for concealing LED strip lighting beneath a diffuser. It can be easily installed in iron places since there are magnets on its backside. The recessed mounted channel light has the following characters: small size, light weight, slim, with magnetic adsorption. It can be used as prime illumination or supplementary illumination. It can effectively avoid lighting dead spot. It looks even better since most of the body is recessed mounted.

Certificates

CE, RoHS, ETL

Cover Options:

Transparent or Milky

Feature

Waterproof LED Channel Light

Data Sheet
Product Type WLC05
Size 16*16mm
Working Voltage 12 / 24V DC
Wattage 15W/m
Cover Diffuser
CRI 90
Available Length 0.3~2m
IP Rating IP65
Working Temperature 0℃~40℃
Storage Temperature -20℃~70℃
Lifespan 50,000hrs
Dimmable Yes

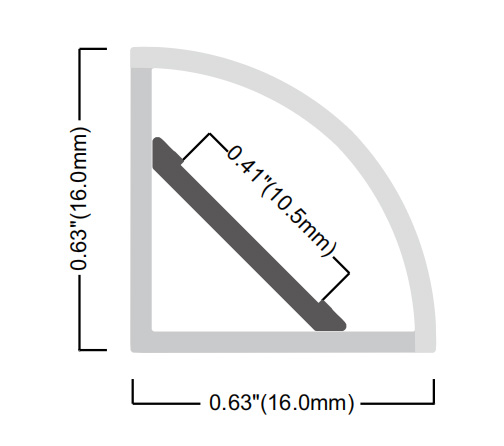

Line Drawing
Inspiration

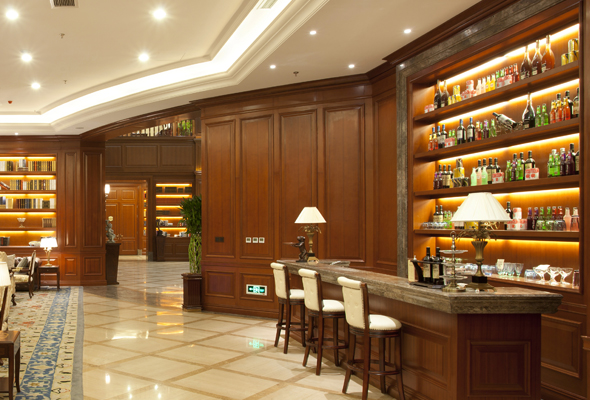

  • Cove

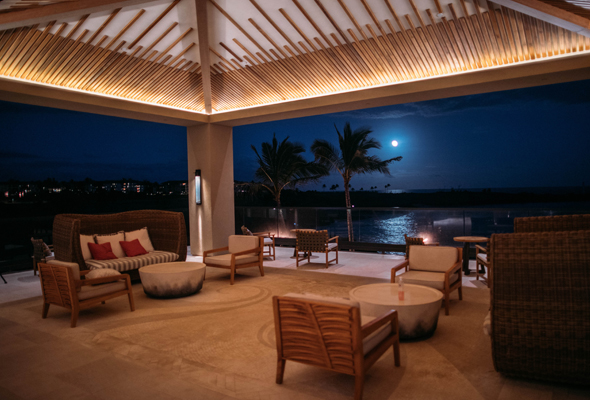

  • Resort
Components

WLC05-HC

WLC05-MC
